Jidoka in Lean Manufacturing: Principles, Benefits, and Implementation

Modern manufacturing faces the dual challenge of increasing efficiency while maintaining the highest quality standards. One proven Lean Manufacturing principle that addresses this is Jidoka – often defined as “automation with a human touch” and also known as autonomation.

The origin of Jidoka dates back to Sakichi Toyoda, the founder of Toyota, who developed the automatic loom. When a thread broke, the machine would automatically stop instead of producing a defective product. This innovation became the heart of Jidoka and one of the two pillars of the Toyota Production System (TPS), alongside Just-in-Time (JIT).

At its core, the Jidoka concept gives both machines and workers the ability to detect quality issues, take corrective action, and halt the process before errors spread. This ensures that workers can stop production whenever problems arise, fix the defect, and then continue production with confidence.

At BeeWaTec, we support companies in applying this principle within modular systems, production flows, and Industry 4.0 environments.

What is Jidoka?

The definition of Jidoka comes from the Japanese word for automation, often translated as “automation with a human touch” or also known as autonomation. It is one of the core principles of  Lean Manufacturing and a foundation of the Toyota Production System.

The Jidoka concept gives both machines and operators the ability to detect abnormalities and stop the production line whenever a problem occurs. Instead of passing defects forward, the Jidoka approach ensures that the issue is immediately visible and corrected at the source.

In practice, Jidoka fosters a culture where:

• If an error occurs → the machine or operator stops.

• The root cause is identified and addressed → preventing waste, defects, and rework.

• Production resumes with improved quality and a stronger quality control process.

By combining automation with human intelligence, Jidoka empowers people and systems to work together for safer, leaner, and more reliable production.

Four Principles of Jidoka

1. Detection
The first step in Jidoka is identifying abnormalities at the source. Sensors, visual indicators, or manual checks help in detecting any irregularity immediately before it escalates into a bigger issue.

2. Stoppage
Once a problem is detected, the process must stop. Halting the production line ensures that no defective products move forward, preventing waste and protecting overall quality.

3. Response
After stoppage, immediate action is taken to fix the problem. Operators or automated systems respond quickly to correct the issue, ensuring production resumes smoothly without carrying defects further.

4. Prevention
The final step focuses on root cause analysis. By inspecting the issue thoroughly and implementing permanent solutions, companies prevent recurrence of the same problem, strengthening long-term process reliability.

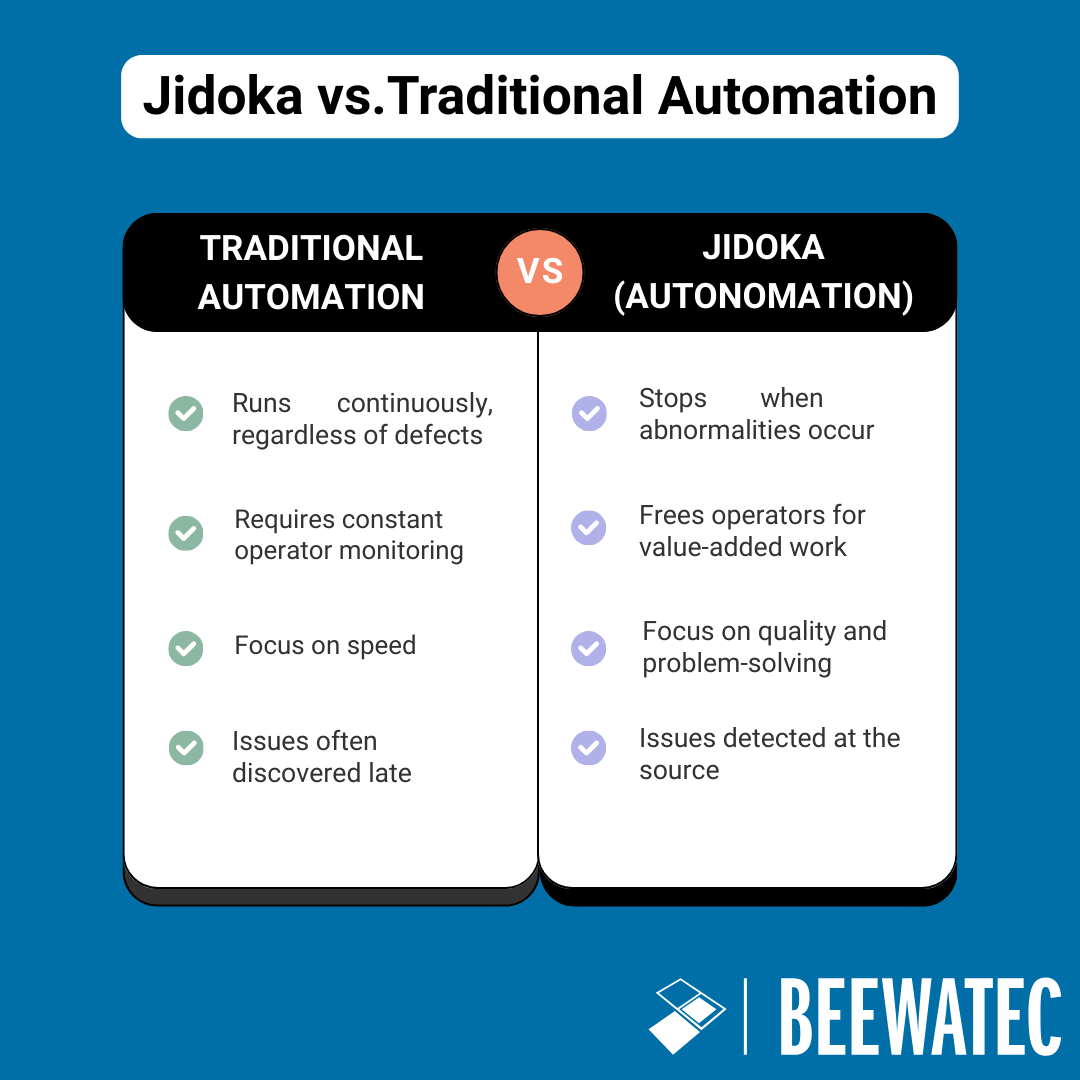

Jidoka vs.Traditional Automation

This shift from conventional automation to Jidoka ensures that production systems are not only efficient but also intelligent, making it a cornerstone of Lean Manufacturing.

Jidoka and Industry 4.0

The principle of Jidoka was first introduced almost a century ago in the Toyota Production System, yet it is more relevant than ever in the age of Industry 4.0. As factories become smarter, Jidoka acts as a bridge between Lean principles and digital technologies.

Instead of viewing jidoka concept as “old Lean” and Industry 4.0 as “new digital,” manufacturers should see them as complementary approaches. Together, they create a production system that is efficient, safe, and intelligent.

Here’s how Jidoka aligns with key Industry 4.0 technologies:

• IoT & Sensors → Machines are continuously monitored for performance, positioning, or wear. Errors are detected before defects occur, allowing predictive action.

• Data Analytics →AI and machine learning identify failure patterns, enabling predictive maintenance and reducing downtime.

• Low-Cost Automation → Modular solutions like BeeWaTec’s racks, AGV integrations, and workstations bring Jidoka to daily operations without high investments.

• Collaborative Robotics (Cobots) → Cobots stop immediately when resistance is detected, ensuring safety while automating repetitive tasks.

• Digital Andon Systems → Cloud dashboards and alerts make production issues visible in real time across the organization.

This blend of traditional Lean principles with modern Industry 4.0 solutions creates resilient, flexible, and future-ready production systems.

Benefits of Jidoka in Lean
Manufacturing

• Zero Defects – Problems are caught early, ensuring only high-quality products leave the factory.

• Reduced Waste (Muda) – Less rework, scrap, and wasted effort.

• Employee Empowerment – Workers are active problem-solvers, not just passive machine operators.

• Safety First – Machines automatically stop when irregularities occur, protecting people and equipment.

• Productivity with Flexibility – Resources are used efficiently without sacrificing agility.

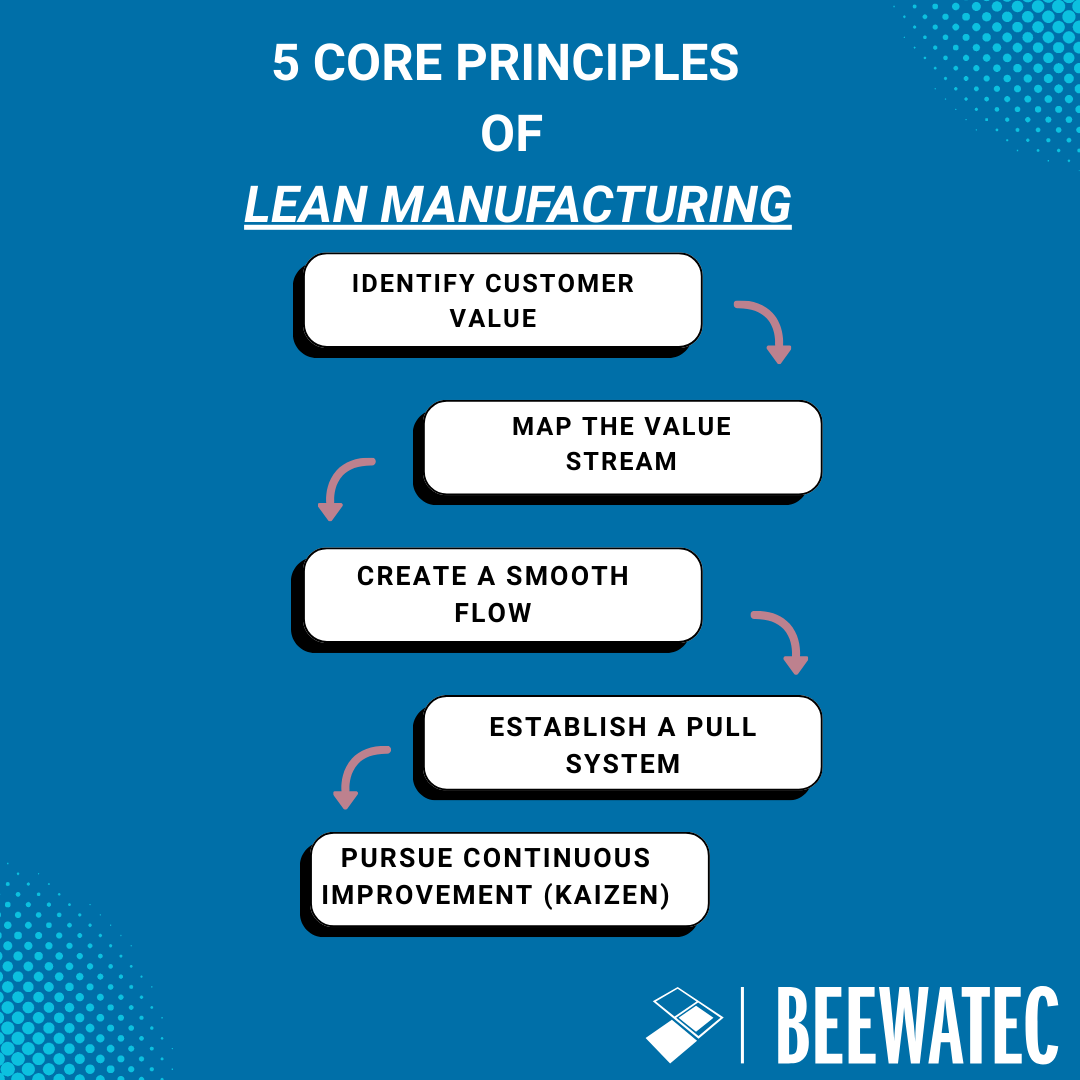

To achieve true “lean” manufacturing and eliminate all forms of waste, companies should apply the five core principles of lean production. These principles build the foundation for efficiency, quality, and continuous improvement:

Implement Jidoka with BeeWaTec

At BeeWaTec, we don’t see Jidoka as a theory — we build it into our modular systems so companies can apply it directly in their production environments. Each solution is designed to make errors visible, support safe automation, and empower workers to solve problems quickly.

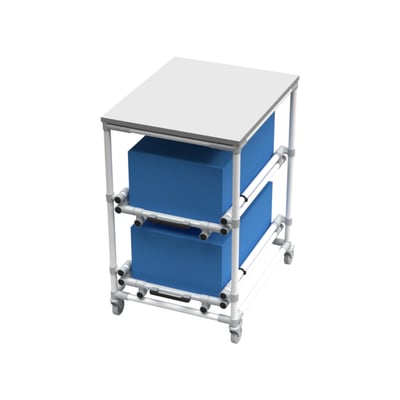

1.Shelf Trolleys & Flow Racks – Transparent Material Flow

Our shelf trolleys and flow racks are designed with Lean in mind:

• Components are presented in a structured, FIFO (First-In-First-Out) manner, preventing mix-ups or shortages.

• Visual transparency makes it easy to spot missing or defective materials at a glance.

• Modular design allows adjustments if product variants or processes change.

This supports Jidoka by making abnormalities in material supply immediately visible.

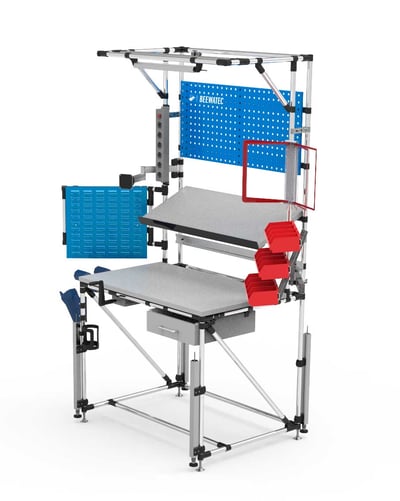

2. Workstations with Visual Controls

BeeWaTec workstations go beyond simple assembly tables:

• Integrated poka-yoke elements (error-proofing devices) reduce the chance of assembly mistakes.

• Visual controls (color coding, standardized labeling, shadow boards) highlight regularities instantly.

• Ergonomic design ensures employees work efficiently and safely, reducing human error.

With these features, operators can stop and correct errors before they flow into the next
stage.

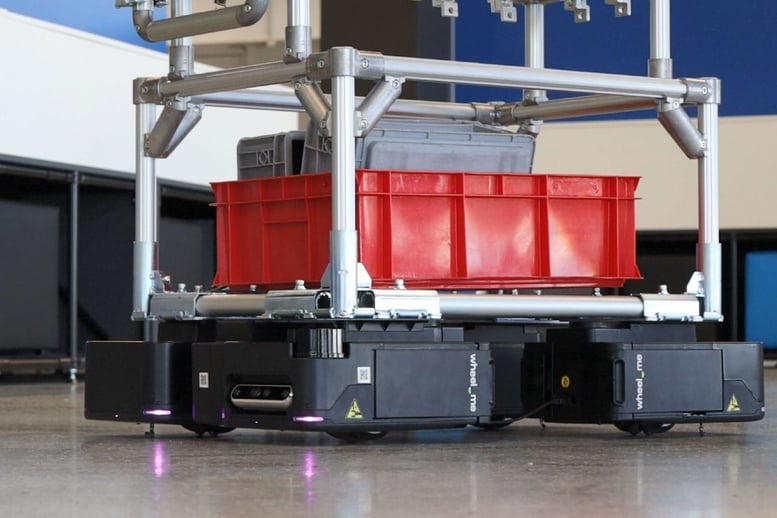

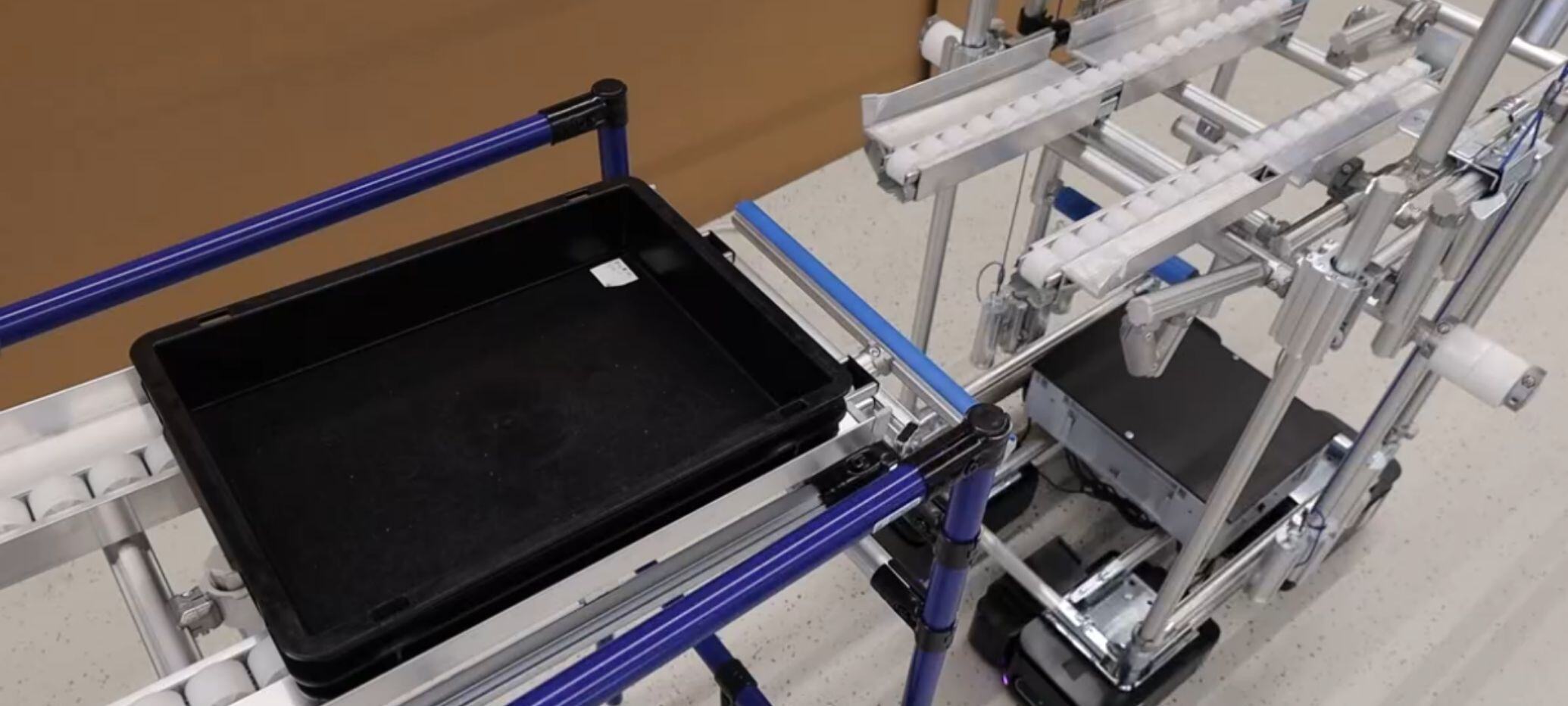

3. AGVs & AMRs – Safe, Automated Transport

Automated transport systems such as AGVs (Automated Guided Vehicles) and AMRs (Autonomous Mobile Robots) extend Jidoka principles to logistics:

• Built-in safety sensors stop vehicles immediately if obstacles or irregularities are detected.

• Material is always delivered on time and in the correct quantity, reducing shortages or overstocking.

• Easy integration with BeeWaTec racks and trolleys creates a seamless, automated intralogistics flow.

This ensures material transport is both safe and error-free.

4.Custom Modular Solutions – Flexibility Without Compromise

Every production environment is unique, which is why BeeWaTec’s modular system enables tailor-made solutions:

• Quick adjustments to racks, trolleys, or workstations when product variants or workflows change.

• Integration of sensors, digital Andon boards, or automation elements for Industry 4.0 readiness.

• Scalable from manual to semi-automated or fully automated processes, without large investments.

This adaptability ensures that quality and transparency are never sacrificed, even in dynamic production environments.

The Result: Lean, Safe, and Reliable Production

By applying Jidoka through BeeWaTec solutions, companies achieve:

• Smoother material flow – less waiting, fewer bottlenecks.

• Reduced waste – errors are caught at the source.

• Long-term stability – processes remain flexible yet reliable as demands evolve.

• Empowered employees – workers can focus on problem-solving and improvement, not error correction.

With BeeWaTec, Jidoka becomes a practical tool that transforms production into a leaner, safer, and future-ready system.

Conclusion

The implementation of Jidoka is one of the core principles of  Lean Manufacturing, ensuring that quality comes first in every process. As a Japanese word, Jidoka is often translated as automation with a human touch or autonomation. It equips machines and operators with the ability to detect abnormalities, stop production immediately, and address problems at the source.

By following the elements of Jidoka—detecting errors, stopping the process, fixing the issue, and preventing recurrence—companies build a strong quality control process. Tools such as the Andon system give operators the power to stop the production line whenever irregularities appear, making errors visible and manageable.

In practice, Jidoka requires teamwork, error-proofing, and continuous improvement to ensure zero defects. It not only empowers workers but also reduces waste, making it one of the most valuable examples in  Lean Manufacturing.

At BeeWaTec, we turn this philosophy into reality through modular systems, shelf trolleys, flow racks, workstations, and AGV/AMR solutions. With these flexible tools, the implementation of Jidoka becomes simple, scalable, and effective—helping companies achieve reliable processes, safer workplaces, and future-ready production.
