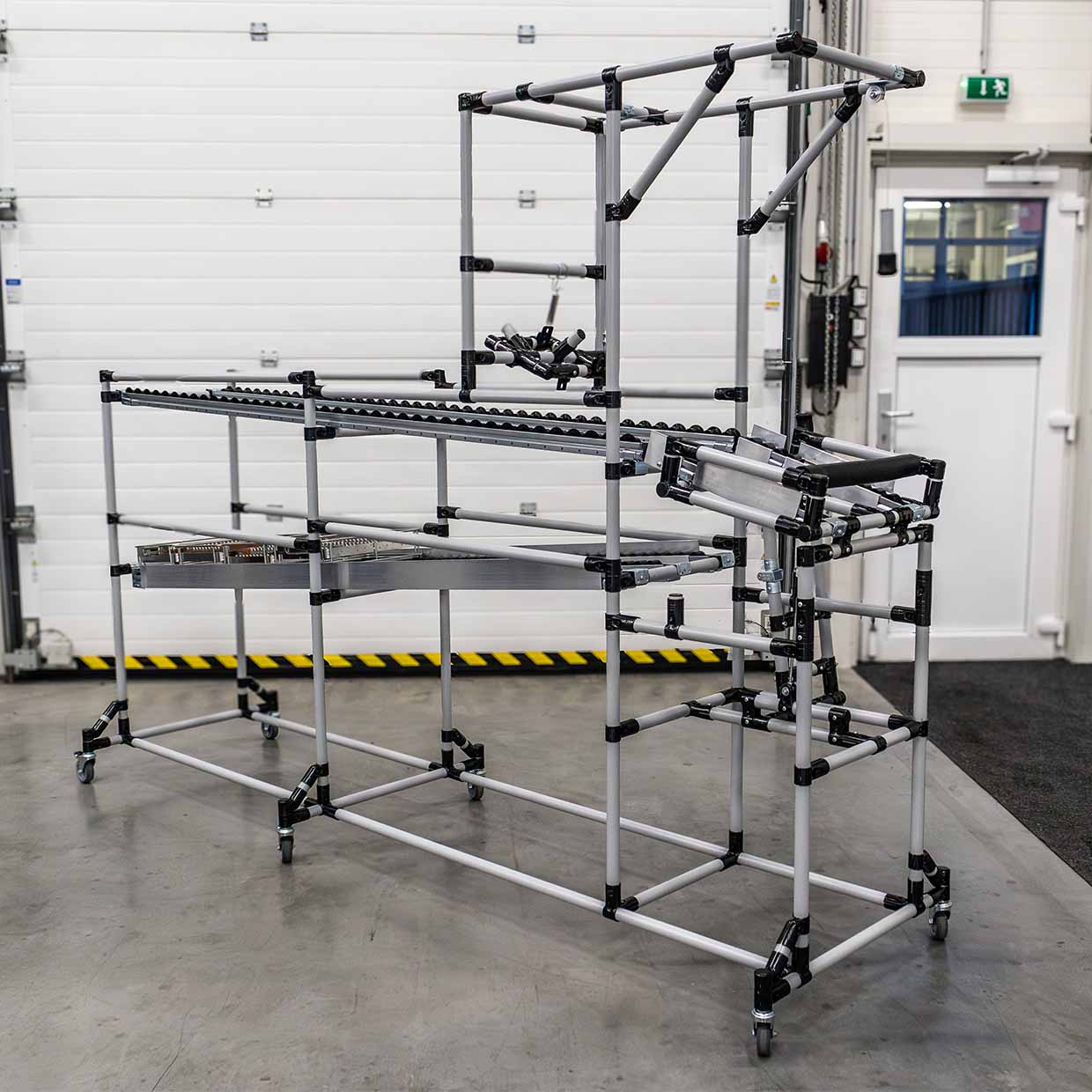

601695 Karakuri

The Karakuri structure is a lean, energy-efficient system designed to improve material handling without power. This model features two key mechanisms to streamline operations. The first is a separating mechanism: pulling the rope handle releases one box while braking the next, ensuring controlled, sequential flow. The second is a rocker mechanism: by pulling a lever, the user tips an empty box onto a lower roller track, positioning it for the next step. This innovative system helps companies optimize workflow, reduce manual effort, and improve workplace ergonomics.

No accessories included.

Request Price Request Step Data

Initial situation:

Do you want to streamline your workflow without added energy costs? Are you looking for a smarter, power-free way to handle materials efficiently? Are you ready to reduce manual effort and improve productivity with simple mechanics?

Our Solution:

Discover how the Karakuri structure can streamline your workflow with zero energy costs by using clever, power-free mechanics. This innovative system allows for efficient material handling through a simple design, reducing manual effort while boosting productivity. With features like the separating mechanism for controlled, sequential box release and the rocker mechanism for easy transfer to the next track, the Karakuri is built to optimize your processes and create a smoother, more ergonomic workspace.

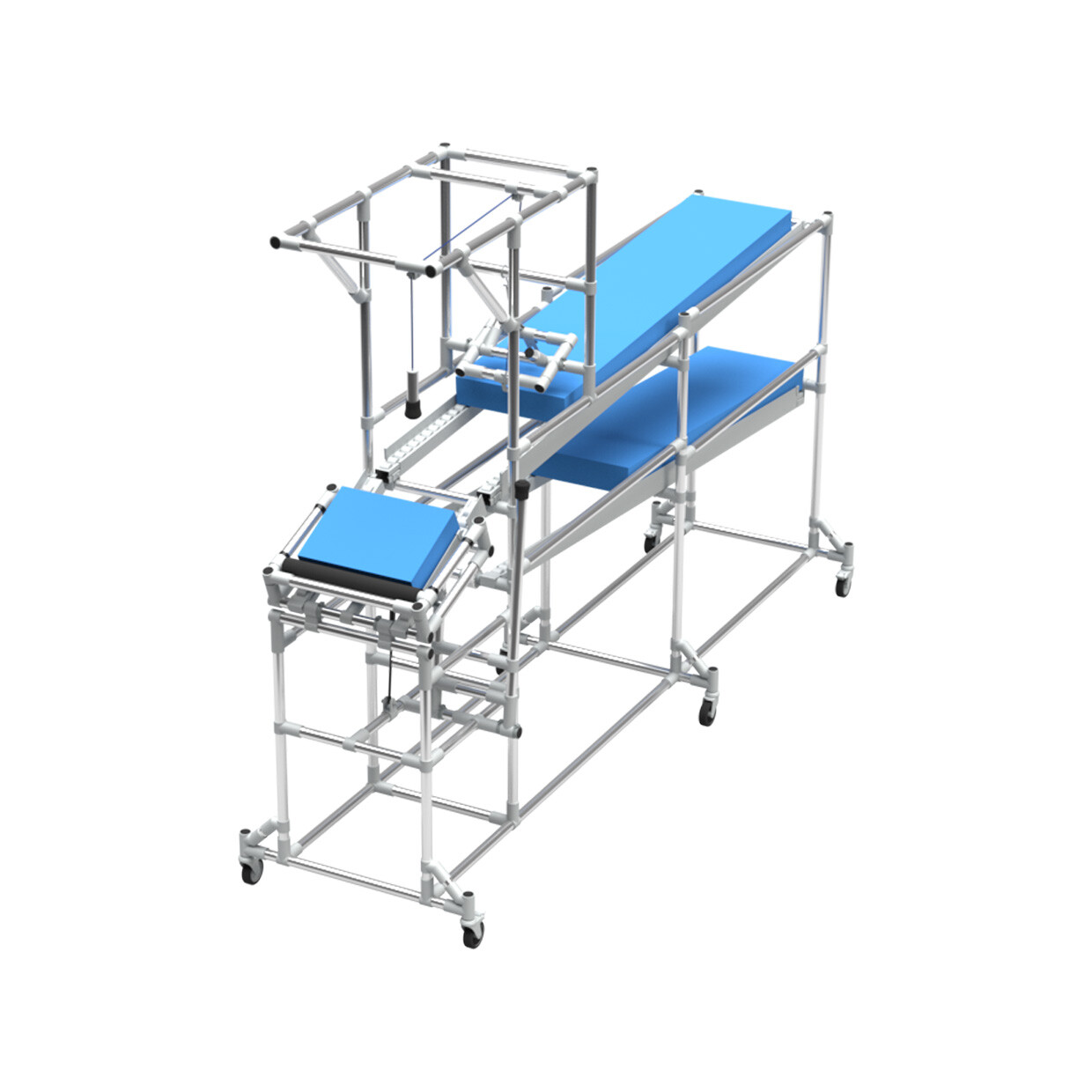

3D-View:

Technical Information:

Article number: 601695
Length: 2495 mm
Width: 707 mm
Height: 1831 mm
ESD: Yes
Profile Type: Steel (round, Ø28 mm, SUS)
Download technical drawing

Receive price and STEP-data

Contact us if you have any questions, want to learn more or start your project. Fill out this form or contact your personal sales representative in your region directly.
