Aluminium pipe racking system for lean production| BeeWaTec

Lako. Flexible. Elegant.

Using the aluminum tube assembly system, the work and operational equipment for your individual production environment can be realized easily and quickly. Thanks to its elegant design and lightweight, the aluminum tube system is ideal for light structures, superstructures for transport carts, and superstructures for towable trailers.

Cevovodi od aluminijumskih profila povezani aluminijumskim priključcima.

Uniformly

The aluminum pipe support system represents the perfect foundation for implementing customized solutions in an industrial environment.

Compatible

It is easily combined with other BeeWaTec systems for pipe mounting (round steel pipes, square steel pipes, and square aluminum pipes).

Marketable

Lean solutions can be easily modified and adapted to your circumstances or requirements.

Reinforced aluminium hose with hose barb

Construction from a combination of aluminium tubes of different dimensions.

Aluminium pipe connector as shelf support.

Otvorena kutija za skladištenje pričvršćena za aluminijumsku profilnu cev.

A flexible joint between three aluminium tubes.

Aluminum pipes with an attractive design and versatile applications.

The aluminium tube structure is dihedrally reinforced with a tube joint.

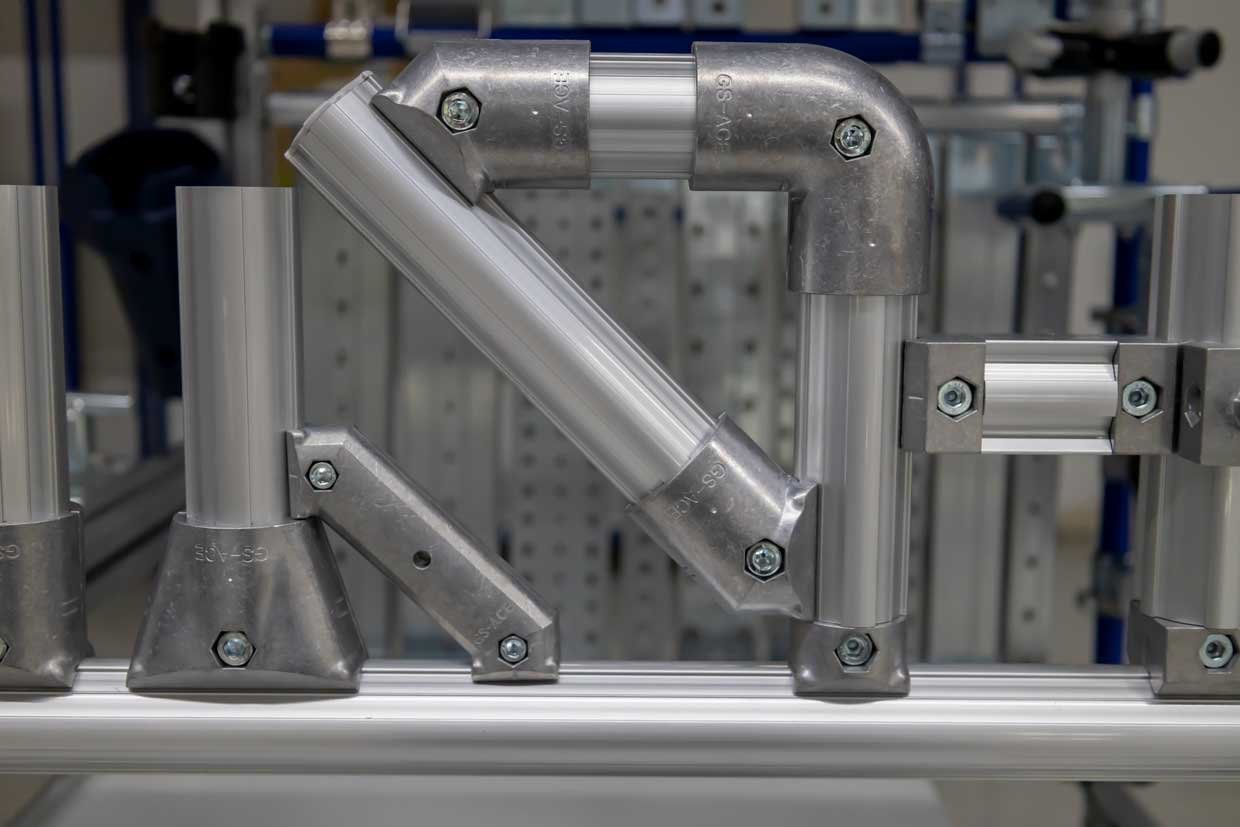

The fittings allow the combination of different types and sizes of aluminum pipes.

Hose flaps close the hose and reduce the risk of overflow.

Aluminium tubes

Our aluminum round tubes, profile tubes, and (profile) double tubes with diameters of 28 mm and 43 mm offer, in addition to a high-quality surface, maximum flexibility and the greatest possible stability with minimal weight.

Thanks to our long-standing partnership with our supplier G.S. ACE, we offer industry-leading quality, along with a wide range of products – see for yourself!

BeeWaTec Alu okrugla cev sa prečnikom od 28 mm

Aluminium round pipes
(Ø28 mm)

Our aluminium round pipes (Ø28 mm) are PE-coated or anodised. They are available in different wall thicknesses for higher load-bearing capacities and can be connected with all Ø28 mm steel joints or via (special) internal clamping aluminium pipe joints.

Get an overview of our aluminium pipes:

Catalogue

BeeWaTec Alu okrugla cev sa profilom i prečnikom od 28 mm

Aluminium round pipes with profile (Ø28 mm)

Our aluminium round pipes with profile (Ø28 mm) have a PE-coated surface and are suitable for the construction of simple angle constructions. The profile pipes are available with different wall thicknesses for higher load-bearing capacities, as a heavy-duty variant (reinforced by internal ribs) and as a double pipe variant. Due to the lateral profile, no twisting of the pipes is possible.

With the help of our aluminium pipe joints, the aluminium round pipes with profile can be connected easily, quickly and elegantly.

Get an overview of our aluminium pipes:

Catalogue

BeeWaTec Alu dvostruke cevi sa profilom i prečnikom od 28 mm

Aluminium double pipe with profile (Ø28 mm)

Our aluminium double pipes (Ø28 mm) are a good option for large spans and high loads. They have a PE-coated surface and are available with different wall thicknesses and load-bearing capacities. Double pipes have a significantly higher load-bearing capacity compared to simple aluminium pipes. Due to the lateral profile, no twisting of the pipes is possible.

With the help of our aluminium pipe joints, the aluminium double pipes with profile can be connected easily, quickly and elegantly.

Get an overview of our double pipes:

Catalogue

Aluminijumska okrugla cevi sa profilom i prečnikom od 43 mm.

Aluminium round pipes with profile (Ø43 mm)

The aluminium profile pipe with 43 mm diameter is PE-coated and offers the highest stability compared to the Ø28 mm series. Therefore, the profile pipes are suitable for particularly stable constructions made of aluminium. Due to the lateral profile, no twisting of the pipes is possible.

With the help of our aluminium pipe joints, the aluminium round pipes can be connected easily, quickly and elegantly.

Get an overview of our aluminium pipes:

Catalogue

Aluminium pipe joint

To turn individual pipes into stable and powerful pipe constructions, G.S. ACE offers a very flexible system of joints that have been specially developed for aluminium pipes. This allows very large pull-out and holding forces of over 80 kg to be achieved.

Depending on the application and your preference, you can choose between internal and external clamp joints:

External crawling

External pipe fittings for clamping made of aluminum are placed around the aluminum round pipe with a profile (Ø28 mm) or are tightened onto the profile holder. This provides greater flexibility while simultaneously preventing possible twisting of the pipe.

Ø28 mm pipe joint, aluminium
Catalogue

Ø43 mm pipe joint, aluminium
Catalogue

internal crawling

The internal tightening of aluminum pipe joints has the same outer diameter as the aluminum pipe itself and tightens it from the inside.

Note:

It can only be used on the ends of the pipes.

Ø28 mm pipe joint, aluminium
Catalogue

Ø43 mm pipe joint, aluminium
Catalogue

Additional works

Only with a wide range of additional parts does our pipe installation system become a modern, modular construction set for every application. Whether you want to move, light, or adjust the height of a workstation, for example, everything you need for your individual solutions with reduced waste can be obtained from us.

For the aluminum pipe installation system, we also offer special accessories such as panel holders, guides, cable clamps, labels, and many other items.

Discover add-on parts for Ø28 mm aluminium round pipe >
Discover add-on parts for Ø28 mm aluminium profile pipe >
Discover add-on parts for Ø43 mm aluminium round pipe >

Panels

Use our panels as tabletops, shelves or partitions.

more information

Four different types of wood panels for individual design of radios, shelves and other industrial equipment.

Systems for

Use our lifting systems to equip your work systems (also those installed later) with height adjustment.
For the aluminum pipe mounting system, we also offer special accessories such as panel holders, guides, cable clamps, labels, and many other items.

more Information

Hidraulični podizni sistem montiran na radnoj stanici omogućava podešavanje visine.

Workplace lighting.

Use our BEEWATEC LED lights for workstations for better ergonomics and a healthier work environment.

more Information

Lamp mounted on a round tube directly above the ergonomic rad station.

Roller rails

Use our roller rails for your flow rack or conveyor belt to ensure the application of the FIFO (First In, First Out) principle.

more Information

Roller chassis with plastic rollers, contracted for various standard applications.

Install the brackets and wheels

Use our installation brackets and wheels to provide your solution with a secure, stable (and mobile) base.Install the brackets and wheels

more Information

This is a wheel with a mounting plate, in the background is a rotating wheel with brakes.

Additional Equipment

Equipment such as floor markings, perforated panels, floor mats for workstations, and storage boxes with an open front are ideal additions for your production.

more Information

The perforated panel as the back wall of the workstation, to which various accessories and tool holders are attached.

See for yourself.

Get to know our products! Contact us through our form and have our best-selling products in your hands in no time.

For a sample of a specific product, additional information, or a personal visit from your contact person, you can also contact us directly.

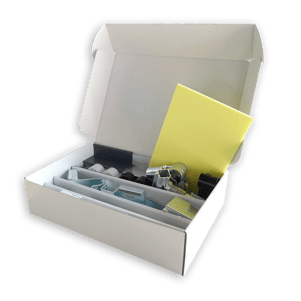

U BeeWaTec kutiji uzoraka naći ćete izbor cevi, priključaka i pribora.

Start now

We don't just offer you a modular system with all the parts you need for your project. We also provide support in finding solutions.

Are you looking for inspiration?

In our digital exhibition space, you will find many of our successful projects and solutions for clients. Get inspired for your own project and take the opportunity to view individual and proven designs in 3D format.

Showroom_Assembly_and_work_tables_Web_01_01

Contact us.

Contact us if you have any questions, would like to learn more, or want to start your project. Fill out this form or contact your personal sales representative in your region directly.

Your personal contact >

Aluminium pipe mounting system

Flexible pipe system for unlimited design possibilities.
